EBS - EXPERTS IN BEARINGS SOLUTIONS

EBS is more than a brand, it is a Symbol of trust and progress.

With integrated operations in research and development (R&D), production, sales, and technical support, EBS specializes in the manufacture
of high-precision components, such as linear rails, ball screws, linear modules, optical axes, linear bearings, and needle bearings, offering
complete solutions for linear transmission systems.

Over the years, the company has earned several national patents, and its products meet rigorous international quality and certification
standards. In recognition of this commitment, EBS has a management system certified according to the DIN EN ISO 9001 standard,
 audited by DQS.

Meeting the growing market demand, we developed the Yellow Line, aimed at robust and high-performance applications.
Produced according to rigorous German manufacturing technological standards, the line has been gaining market share for its reliability
and durability.

Currently, we are proud to manufacture high-performance rod ends and ball joints designed for severe applications in heavy machinery,
cranes, mining, port operations, and lifting systems, ensuring strength, durability, and reliability even under the most demanding conditions.

High Quality Materials

We deliver top-tier results using premium materials and strict.

The Brand E

EBS stands for innovation, quality , and a commitment to meeting the unique

challenges of each industry we serve.

Experts In Engineering

 Wide range os performance products and

efficiency available to you company.

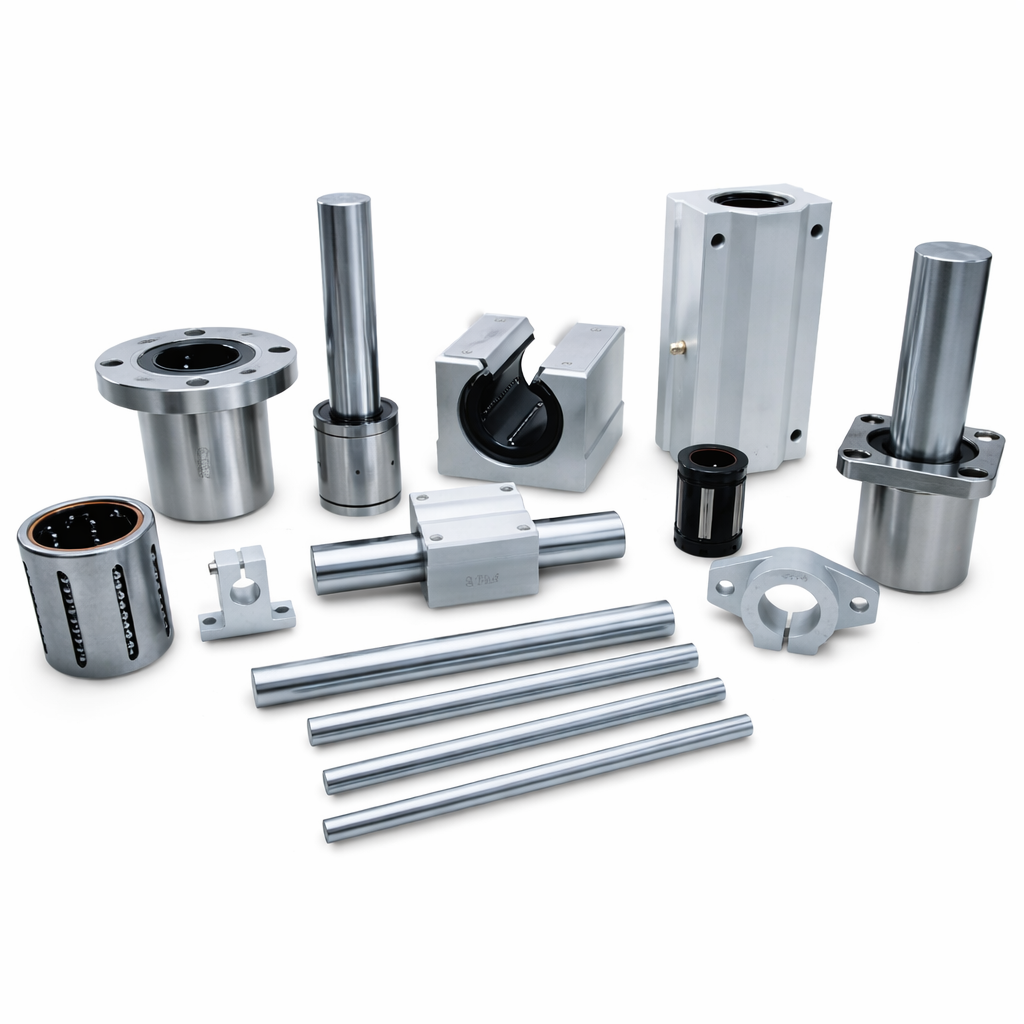

Linear Bearings Blocks and Bearings

Our linear bearings are manufactured from high-quality bearings steel, ensuring robust durability.


We offer a comprehensive product range, including standard types, adjustable clearance types, open types, extended types, and various flange configurations such as method flanges. Shaft diameters range from 3 to 150 milimeters.

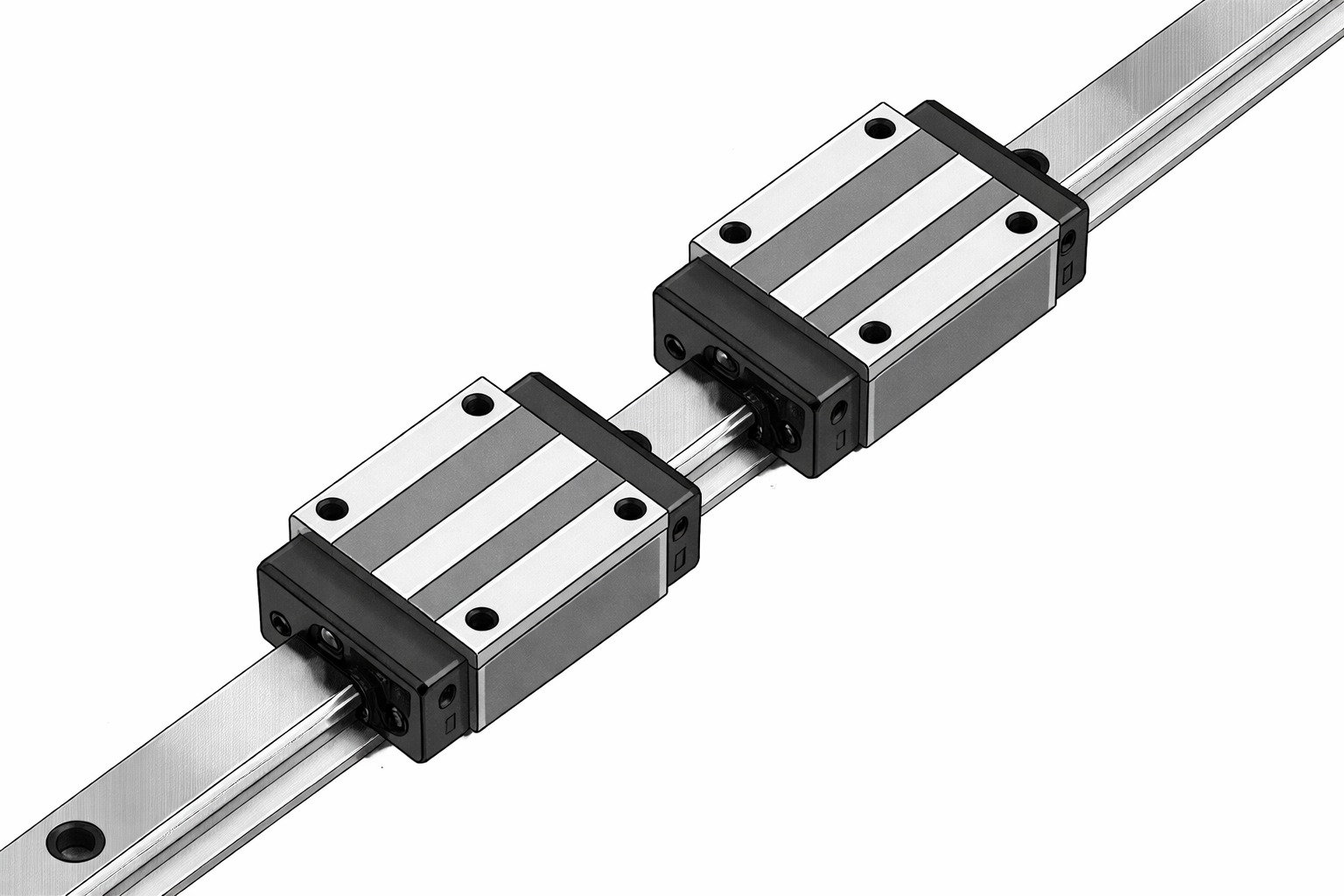

Linear Guide

Our company offers a comprehensive range of linear guide rail products, each featuring unique load capacities, precision grades, and mounting Options to meet diverse industrial application requirements.



All Model Series in Summary


Rod ends and ball joints are used for non-linear motion and can compensate for angle and rotation errors.

We supply all common rod end designs, including radial and axial rod ends, rod eyes with male and female

threads, and hydraulic rod ends for welding or clamping.

Rod ends are available in lubricable or maintenance-free designs.

They can also be manufactured from stainless steel.

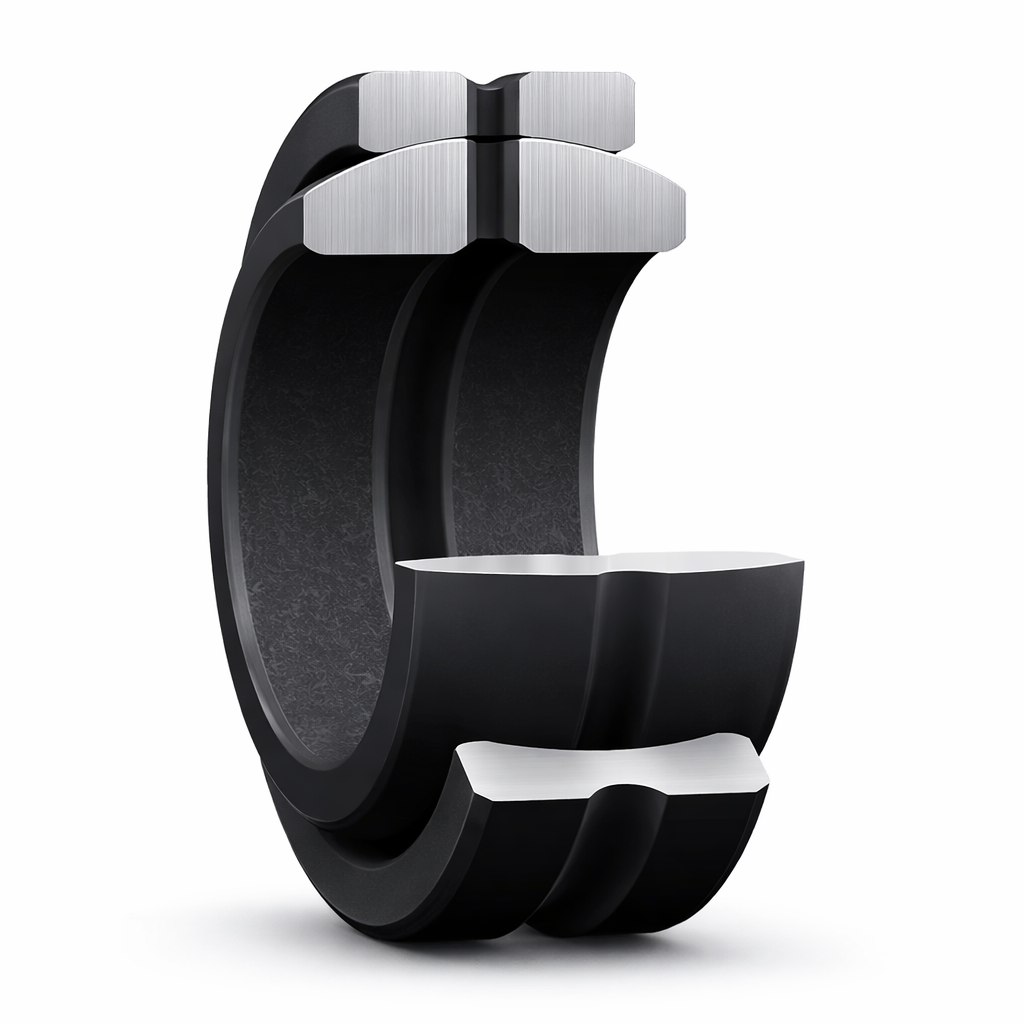

GE..DO-GE..DO-2RS

ISO 12240-1 Series E

AREAS OF APPLICATION

Suitable for applications with high, alternating and impact loads, such as construction machinery, hydraulic cylinders, industrial joints and stabilizers, transport vehicles and ship hinges.


FEATURES

Manufactured from 100Cr6 bearing steel, hardened and phosphated with manganese. The 2RS version also has sliding seals.

Standard radial clearance C0, possible execution with increased clearance C3 or reduced clearance C2. Contact surfaces lubricated with MoS2.


OPERATING TEMPERATURE

GE..DO – recommended -50/+120 °C – maximum temperature 200 °C

GE..DO-2RS – recommended -3/+180 °C – maximum temperature 130 °C


COUPLING

Steel/Steel to be lubricated regularly

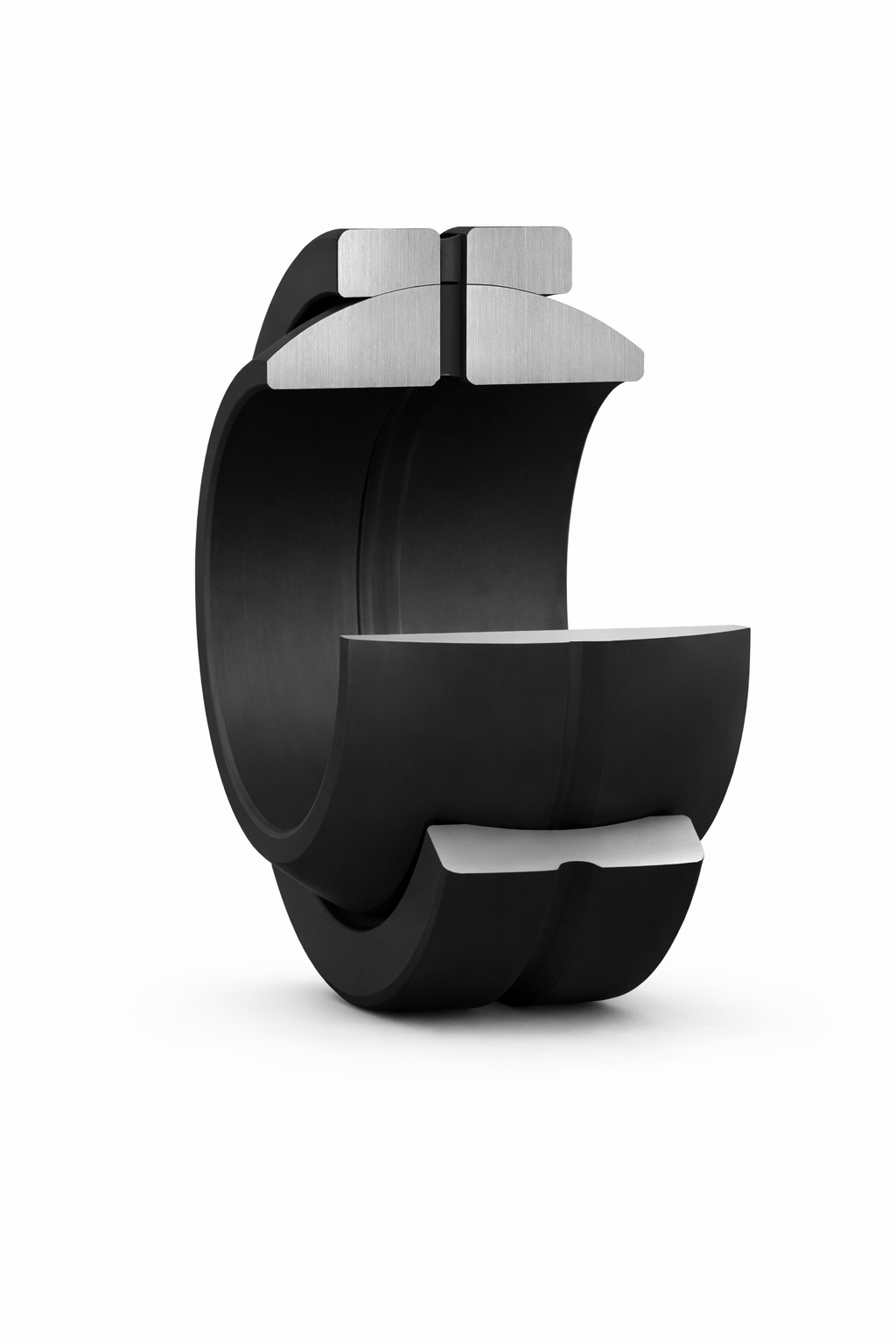

GE..FO-GE..FO-2RS

ISO 12240-1 Series E

APPLICATION AREAS

Constructed with a wider outer ring and a larger ball joint, this joint is suitable for

applications with very high loads and where a larger angle of inclination is

required.


FEATURES

Manufactured from 100Cr6 bearing steel, hardened and phosphated with manganese. The 2RS version also features sliding seals. Standard C0 radial clearance. Contact surfaces lubricated with MoS2.


OPERATING TEMPERATURE

GE…FO recommended -50/+120 °C – maximum temperature 200 °C

GE…FO-2RS recommended -30/+80 °C – maximum temperature 130 °C


COUPLING

Steel/Steel to be lubricated regularly

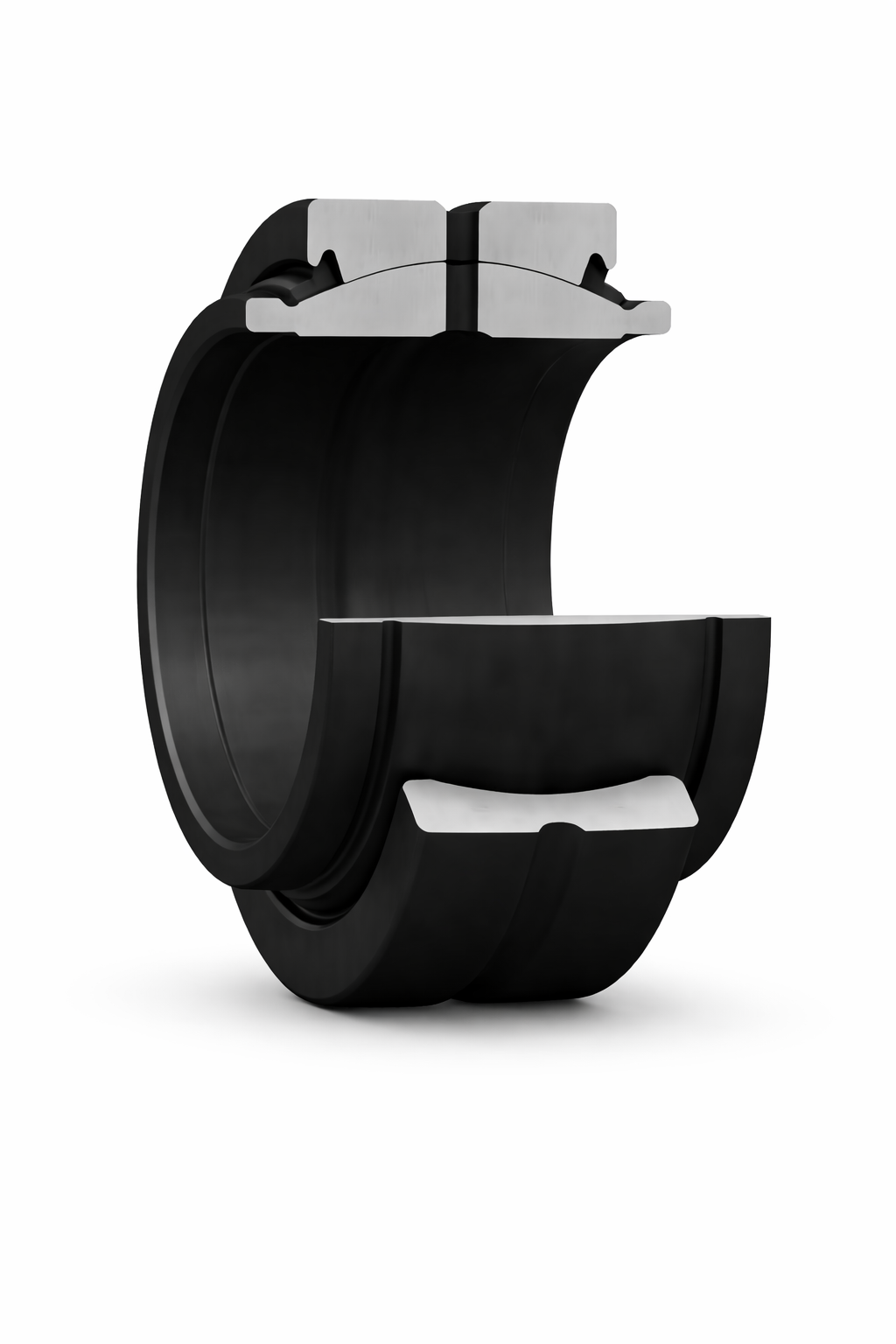

GE..LO

ISO 12240-1 W Series

AREAS OF APPLICATION

Suitable for the construction of hydraulic cylinders that meet CETOP standards and DIN 24 333 and DIN 24 336, ISO 6020/I and ISO 6022 regulations.


CHARACTERISTICS

Manufactured from 100Cr6 bearing steel, hardened and phosphated with manganese. Inner ring with cylindrical extensions on both sides for support. Standard radial clearance C0. Contact surfaces lubricated with MoS2.

OPERATING TEMPERATURE

Recommended temperature: -50/+120 °C – maximum temperature: 200 °C

COUPLING

Steel/Steel to be lubricated regularly

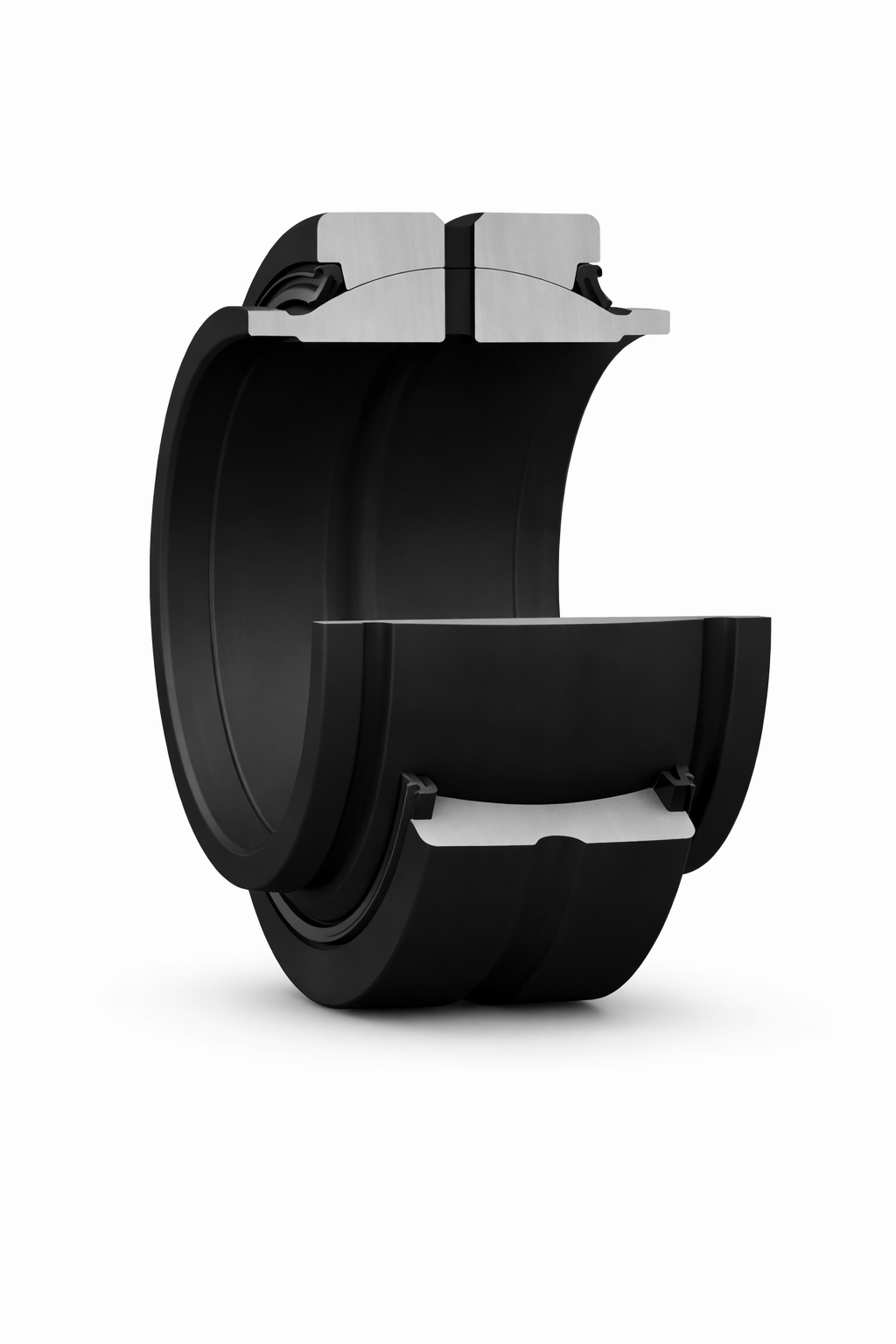

GE..HO-2RS

ISO 12240-1 G series

AREAS OF APPLICATION

Suitable for applications with high, alternating and impact loads, such as construction

machinery, hydraulic cylinders, joints and stabilizers in the industrial sector.

CHARACTERISTICS

Manufactured from 100Cr6 bearing steel, hardened and phosphated with manganese.

Standard radial clearance C0. Inner ring with cylindrical extensions on both sides for fitting,

eliminating the need for spacer rings. Contact surfaces lubricated with MoS2, with

lateral sliding seals.


OPERATING TEMPERATURE

Recommended temperature: -50/+120 °C – maximum temperature: 200 °C


COUPLING

Steel/Steel to be lubricated regularly

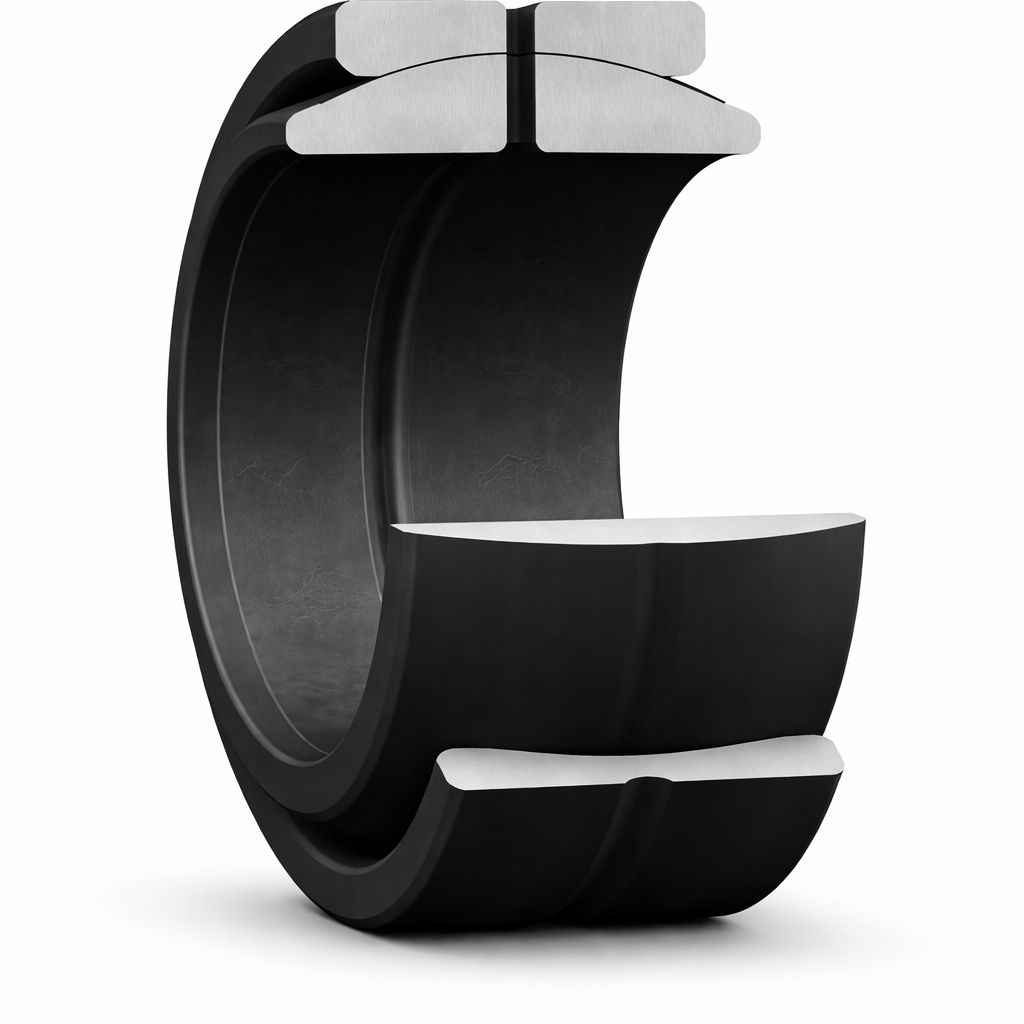

GE..ZO

ISO 12240-1 G series INCH

AREAS OF APPLICATION

Suitable for applications with high, alternating and impact loads, such as:

construction machinery, hydraulic cylinders, joints and stabilizers for the industrial

sector and transport vehicles, ship hinges.


FEATURES

Manufactured from 100Cr6 bearing steel, hardened and phosphated with manganese. Standard C0 radial clearance. Contact surfaces lubricated with MoS2. Sliding seals added for GE..ZO-2RS.

COUPLING

Steel/Steel couplings should be lubricated regularly.

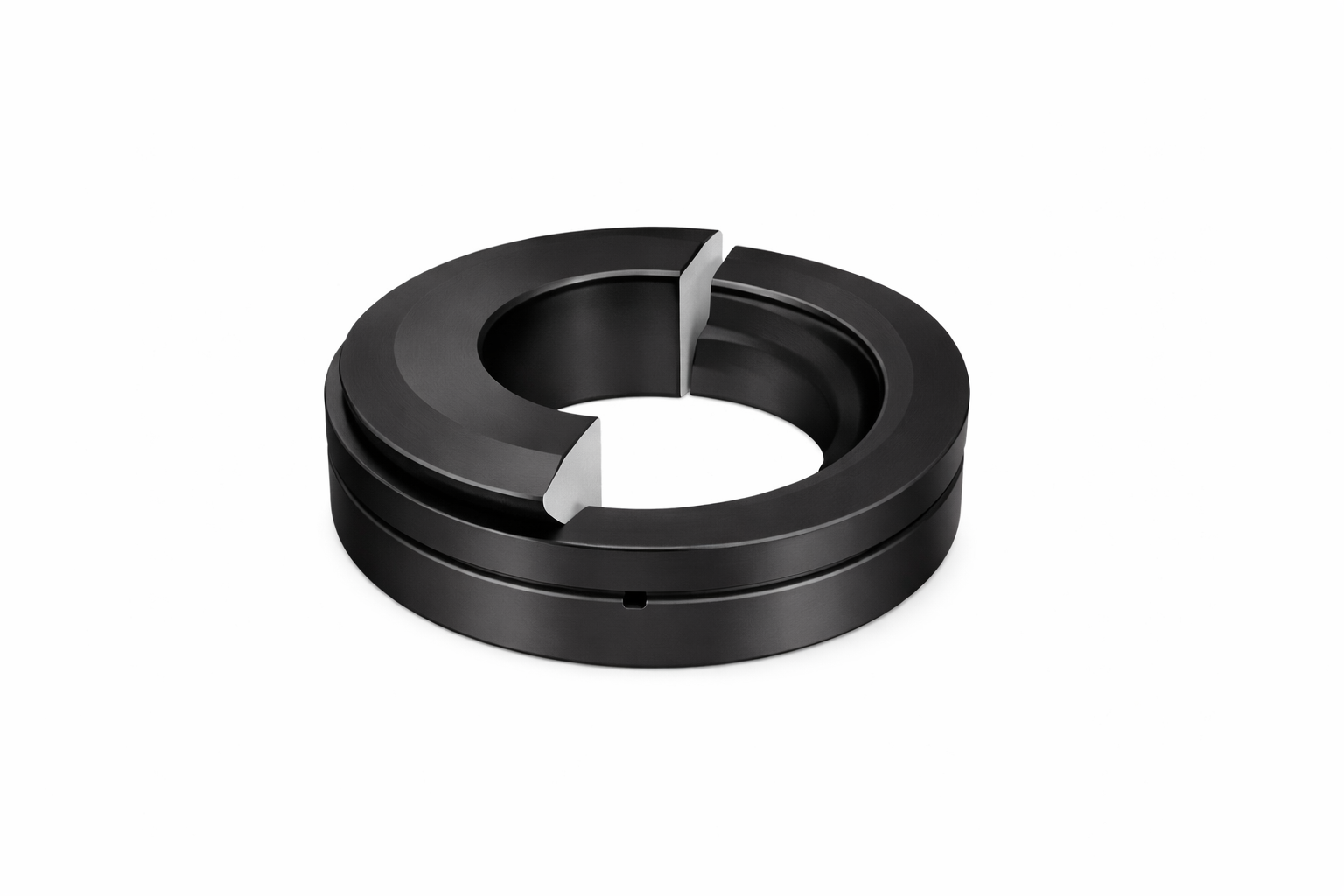

GE..AX

Angular contact spherical sliding bearing DIN ISO 12240-3

APPLICATION AREAS

Sliding bearings, as an alternative to tapered roller bearings. Particularly suitable for applications where roller bearings fail. They support unidirectional loads and

can be combined with spherical radial bearings to support combined radial and

axial loads.


CHARACTERISTICS

Manufactured from 100Cr6 bearing steel, hardened and phosphated with manganese. Contact surfaces lubricated with MoS2.


OPERATING TEMPERATURE

Recommended temperature: -50/+120 °C – maximum temperature: 200 °C

COUPLINGS

Steel/Steel to be lubricated regularly

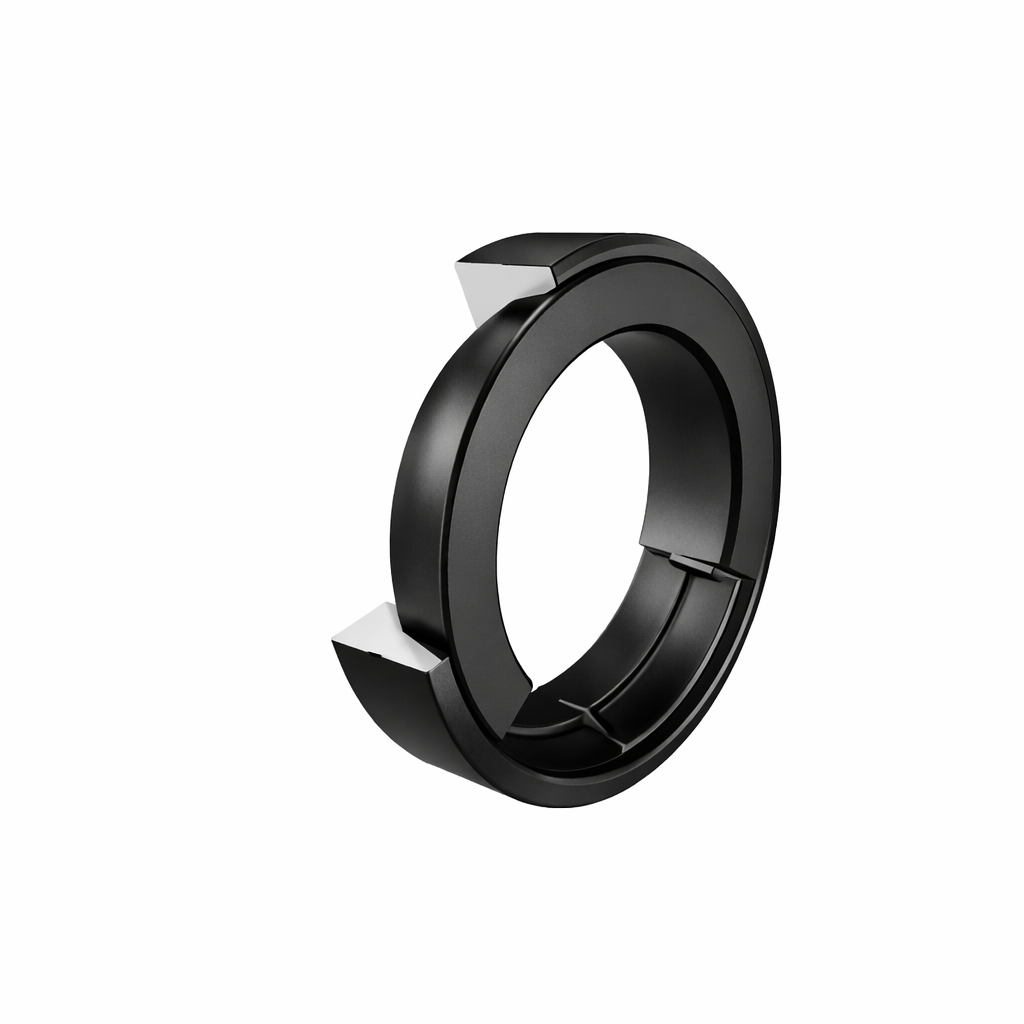

GE..SX

Angular contact spherical sliding bearing DIN ISO 12240-2

APPLICATION AREAS

Sliding bearings, as an alternative to tapered roller bearings. Particularly suitable for applications where bearings fail under impact loads combined with small oscillation angles, such as in trailer axles, vehicle hinge supports and similar applications.


CHARACTERISTICS

Manufactured from 100Cr6 bearing steel, hardened and phosphated with manganese. Contact surfaces lubricated with MoS2.


OPERATING TEMPERATURE

Recommended temperature: -50/+120 °C – maximum temperature: 200 °C


COUPLING

Steel/Steel to be lubricated regularly

Smooth Self-lubricating Ball Joints

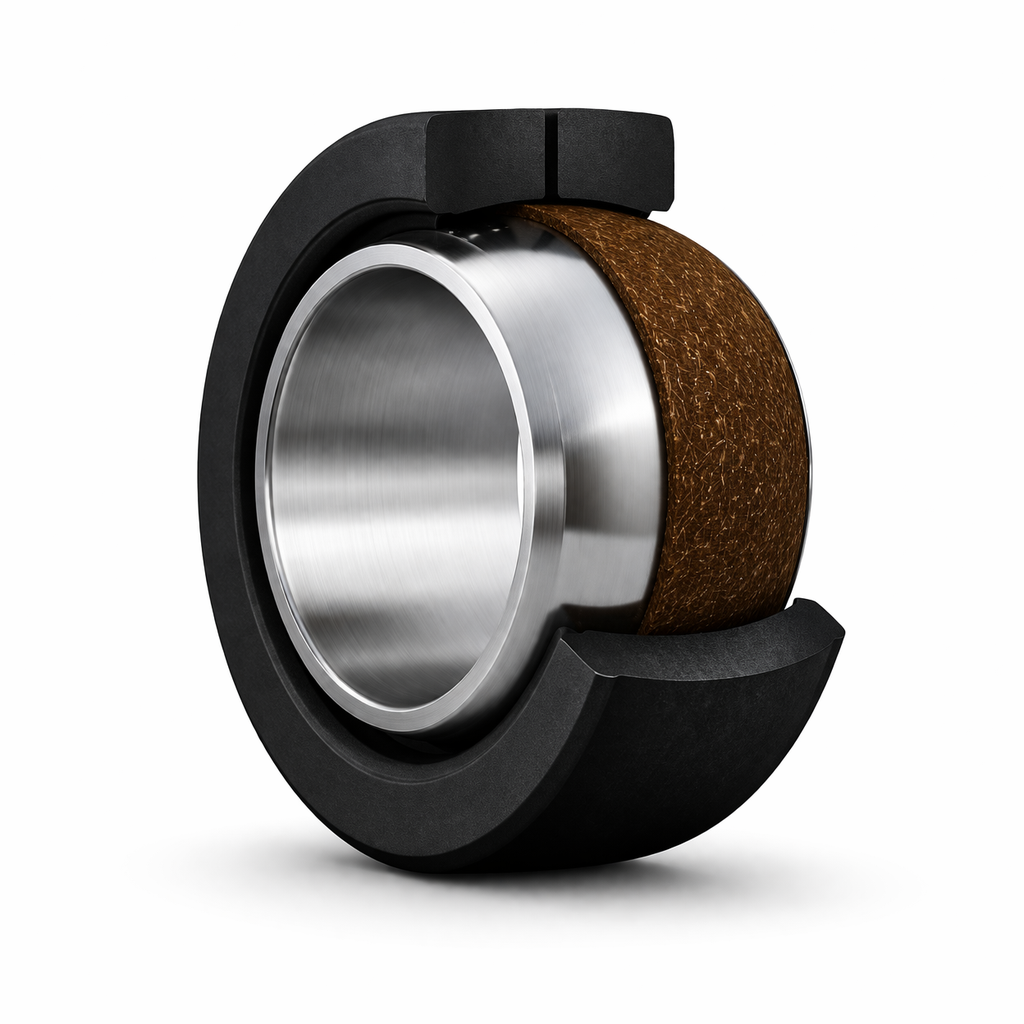

GE..UK-GE..UK-2RS

ISO 12240-1 Series E

APPLICATION AREAS

Suitable for applications with high and unilateral loads, without impacts, such as lifting equipment, lifting tables, crane arms and roller doors.

CHARACTERISTICS

GE..UK – Outer ring made of carbon steel pressed around the inner ring with a PTFE composite bushing. Hardened inner ring with chrome-plated sliding surface. Standard radial clearance C0.



GE..UK-2RS – Outer ring made of 100Cr6 bearing steel, hardened and phosphated with manganese, with PTFE coating and sliding seals. Standard radial clearance C0.


OPERATING TEMPERATURE

GE..UK – recommended -60/+80 °C – maximum temperature 130 °C

GE..UK-2RS – recommended -20/+80 °C – maximum temperature 130 °C


COUPLING

Chrome-plated steel/PTFE fabric. Self-lubricating – Lubrication prohibited.

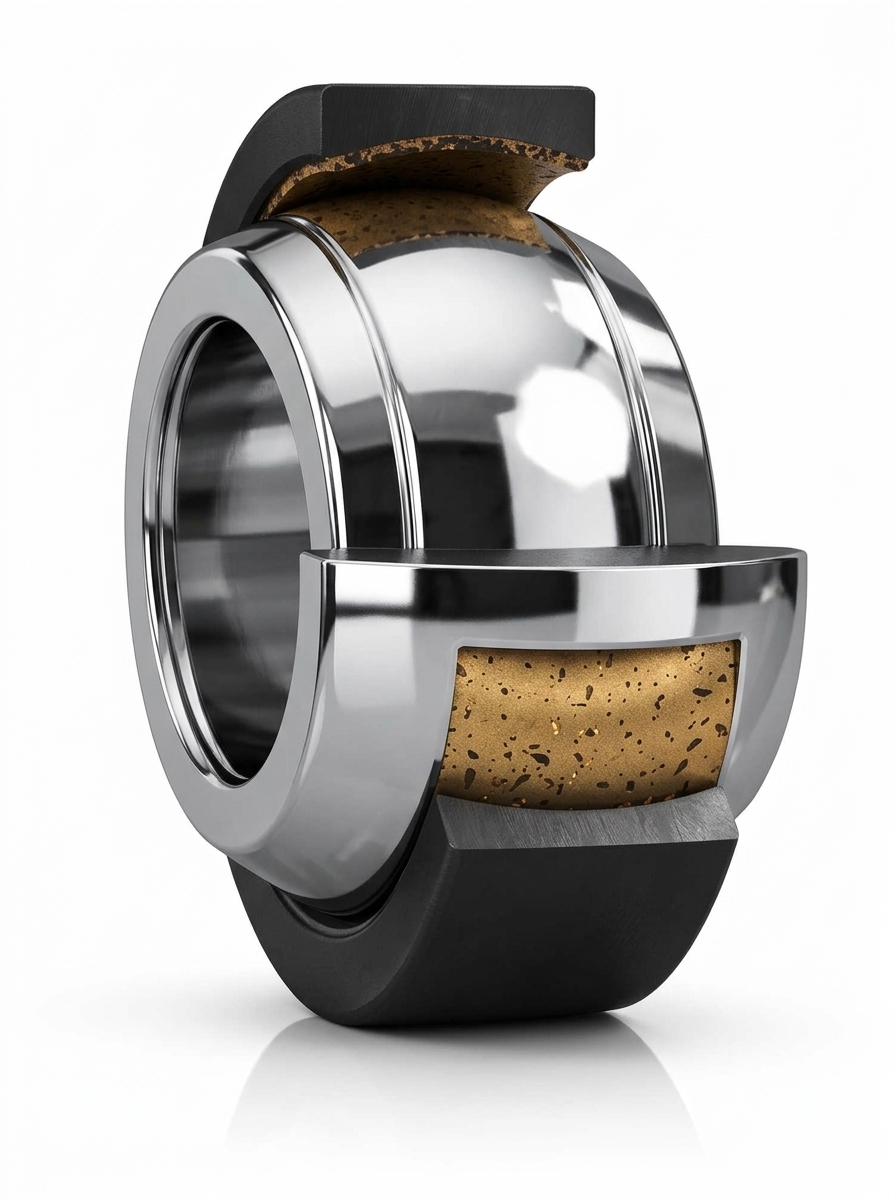

GE..FW-GE..FW-2RS

ISO 12240-1 G series

APPLICATION AREAS

This joint, constructed with a wider outer ring and a larger ball joint, is suitable for applications with very high unilateral loads, without shock stress and where a greater angle of inclination is required, for example, lifting equipment, lifting tables, crane arms and roller doors.


CHARACTERISTICS

GE..FW – Outer ring made of carbon steel pressed around the inner ring with a PTFE composite bushing between them. Hardened inner ring with chrome-plated sliding surface. Standard radial clearance C0. GE..FW-2RS – Outer ring made of 100Cr6 bearing steel, hardened and phosphated with manganese, with PTFE fabric lining and sliding seals. Standard radial clearance C0.


OPERATING TEMPERATURE

GE..FW – recommended -60/+80 °C – maximum temperature 130 °C

GE..FW-2RS – recommended -20/+80 °C – maximum temperature 130 °C


COUPLING

Chrome-plated steel/PTFE fabric. Self-lubricating – Lubrication prohibited.

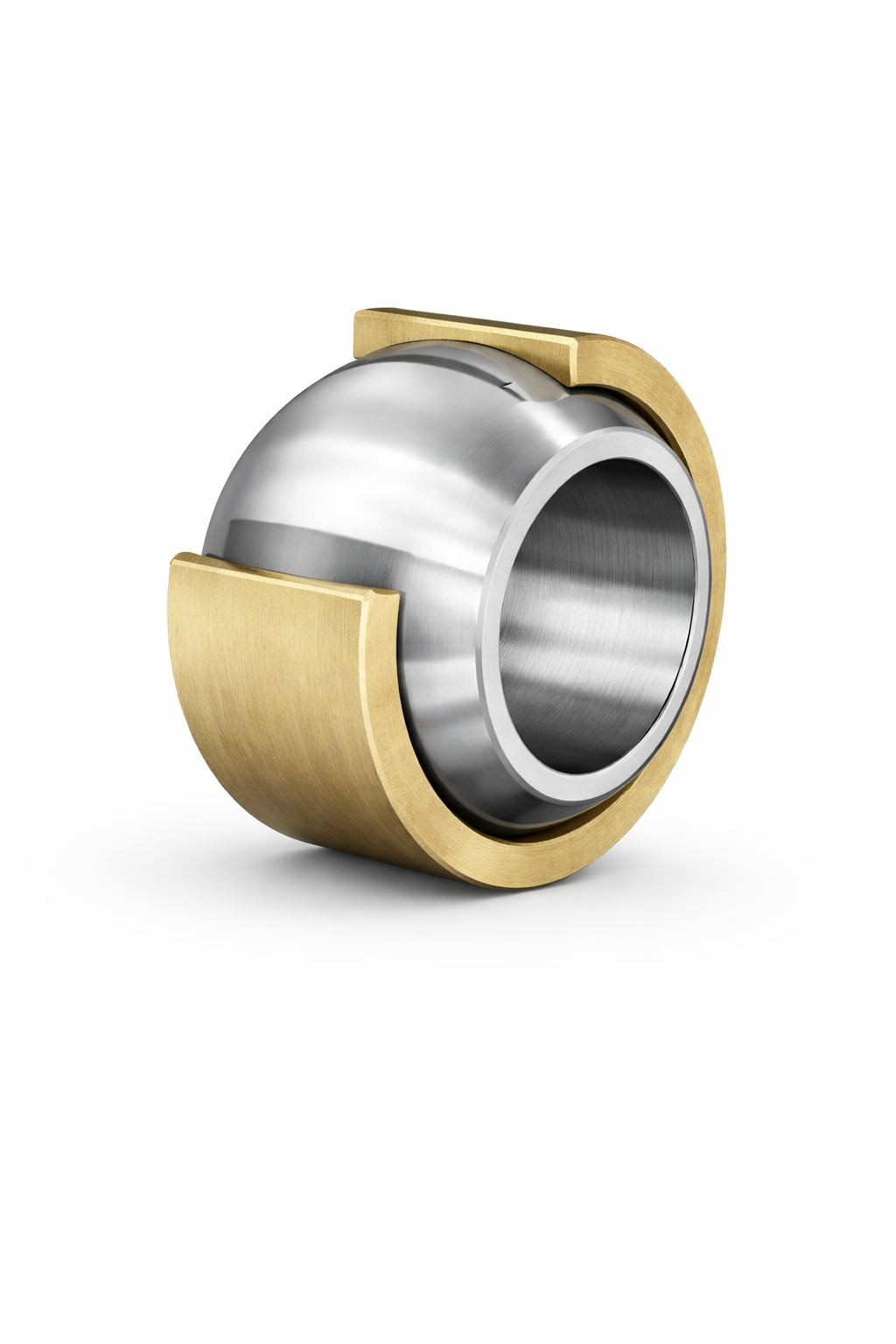

GE..PW

ISO 12240-1 G series

AREAS OF APPLICATION

Suitable for applications with moderate loads and high movement speeds, without impacts.

FEATURES

One-piece brass outer ring with a PTFE strip inside, Inner ring made of hardened 100Cr6 steel with a chrome-plated sliding surface.


Lubrication prohibited.


OPERATING TEMPERATURE

Recommended temperature limit: -60 °C / +80 °C ; 130 °C


COUPLING

Chrome-plated stainless steel / self-lubricating PTFE fabric.

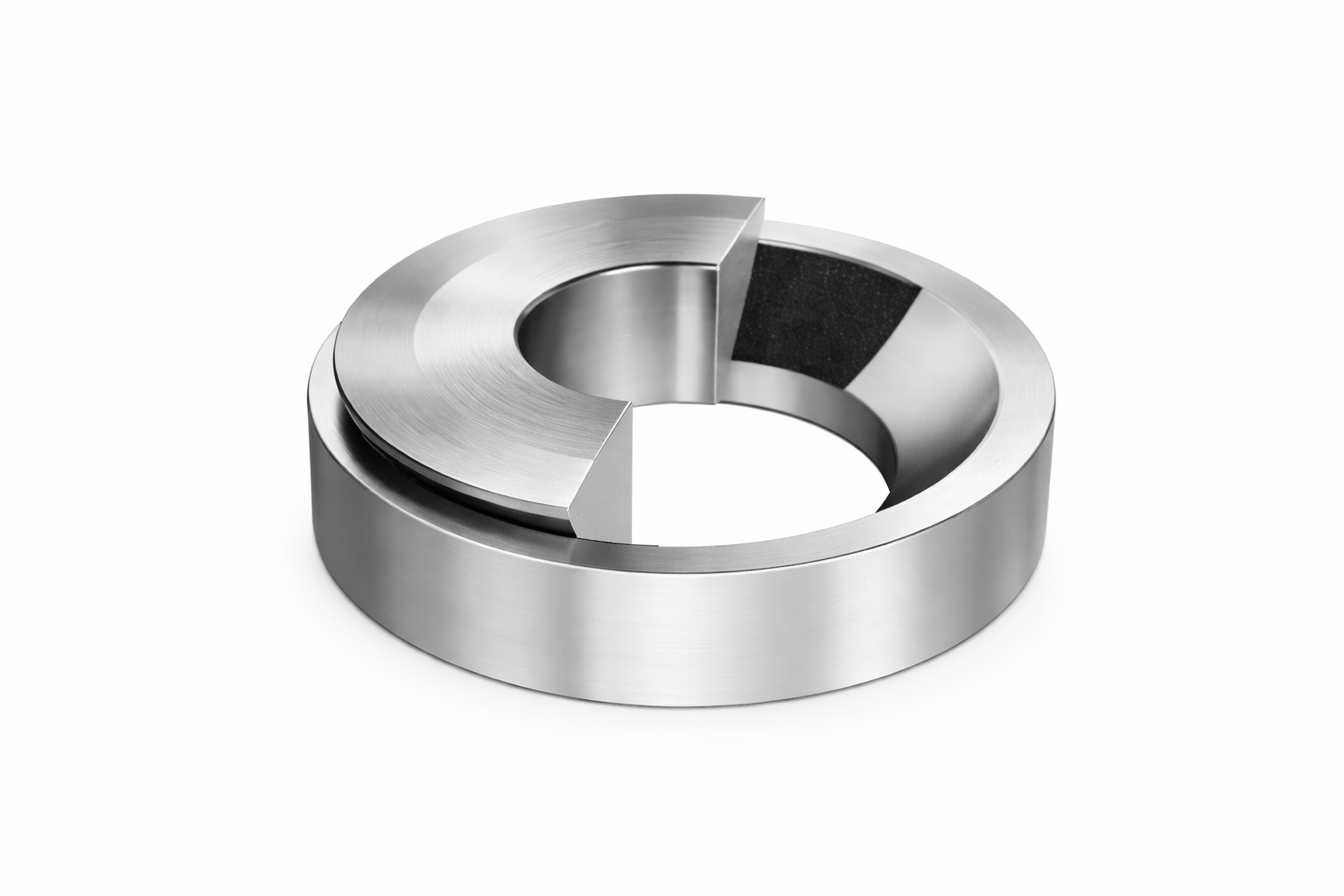

GE..AW – GE ..SW

Angular contact spherical sliding bearing

Axial rod ends are designed to support axial loads and combined radial and axial loads. This specific model includes a combination of steel/FRP PTFE sliding contact surface that requires no maintenance. However, relubrication, which can be applied to both sides, can extend the bearing's service life.


  • Designed for axial loads and combined radial and axial loads
  • Separable shaft washer and bearing housing washer facilitate assembly
  • Long service life and maintenance-free
  • Relatively insensitive to contaminants
  • Low coefficient of friction


GE..AW – recommended -50/+80 °C – maximum temperature 150 °C

GE..SW – recommended -50/+80 °C – maximum temperature 150 °C





Ball joints and ball joint terminals


These EBS rod ends contain a spherical ball joint with a combination of steel/bronze sliding contact surface and are also
manufactured from sintered PTFE, requiring no maintenance when used.

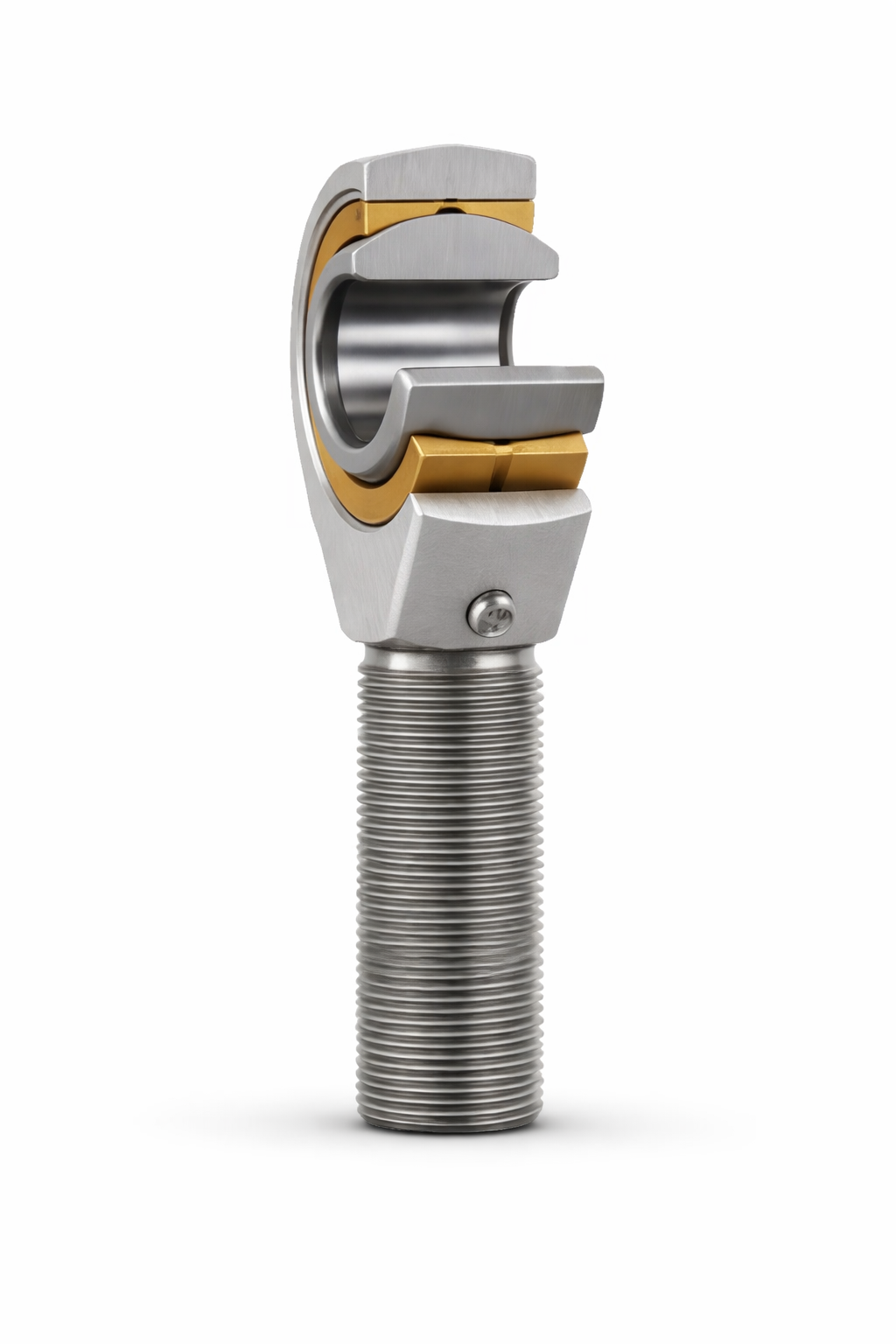

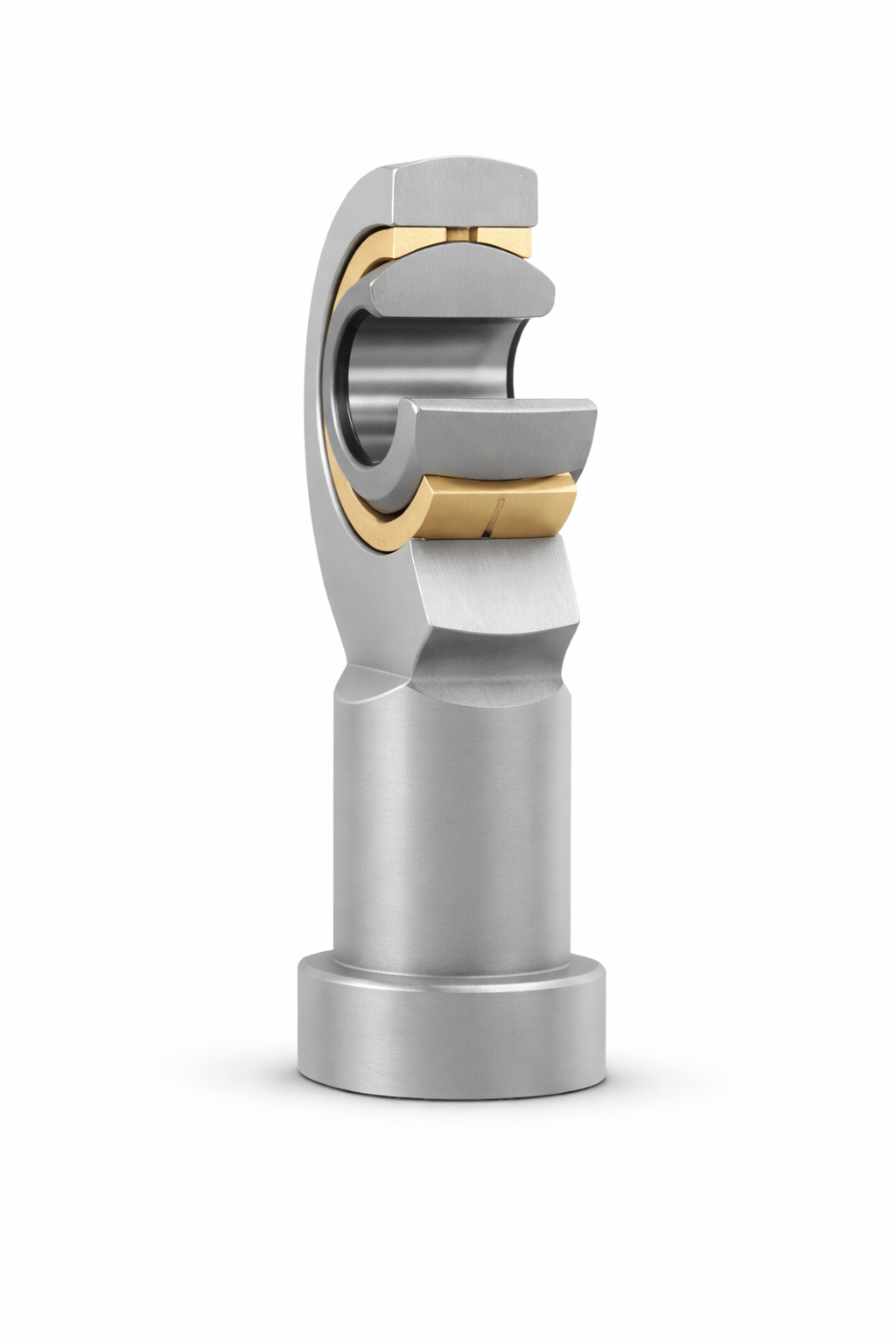

PHS..PB - POS ..PB

Articulated head with internal and
external threads, mandatory maintenance.

APPLICATION AREAS

Rotating terminal with long internal and external threads, suitable for
mounting on pneumatic cylinders, industrial machine levers, for
packaging, wrapping, and all movements where it is necessary to
ensure the correct alignment of the structures.

CHARACTERISTICS

The outer body is made of stamped C45 steel, while the inner part
is made of brass and chrome-plated steel. They have long internal
and external threads, suitable for a wide range of center distance
adjustments.

Supplied with zinc galvanizing treatment.


Terminals That Require Maintenance

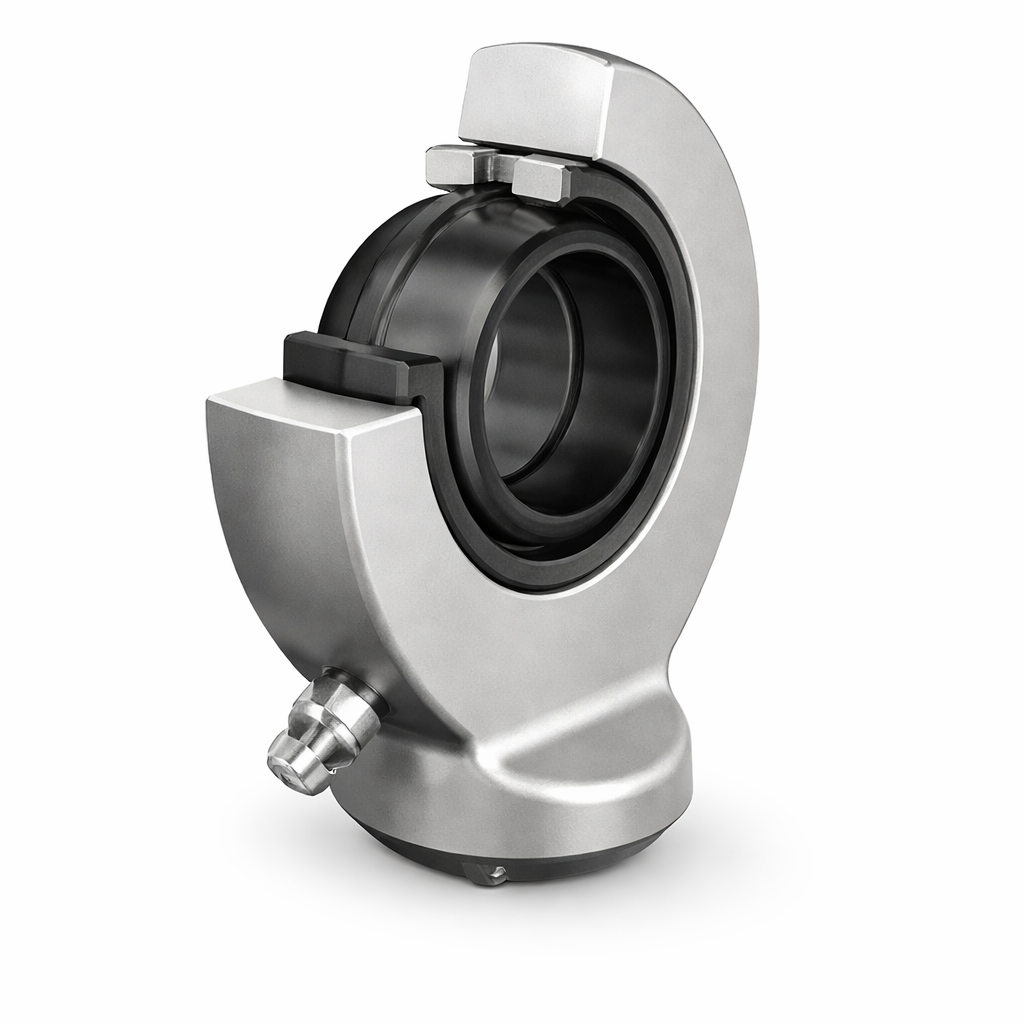

GK..DO

Series E of the ISO 12240-4 standard

AREAS OF APPLICATION

Rotating terminal for the production of hydraulic cylinders, particularly suitable for welding onto chrome-plated bars due to its circular end.


FEATURES

Manufactured from stamped ST52.3 steel.


COUPLING

Steel/Steel for regular lubrication, constructed according to ISO 12240-4, with GE..DO, GE..LO, GE..FO, spherical sliding bearing mounted according to ISO 12240-1, secured by caulking. Supplied with centering pin.

Equipped with grease nipple for lubrication from 20 mm in diameter.

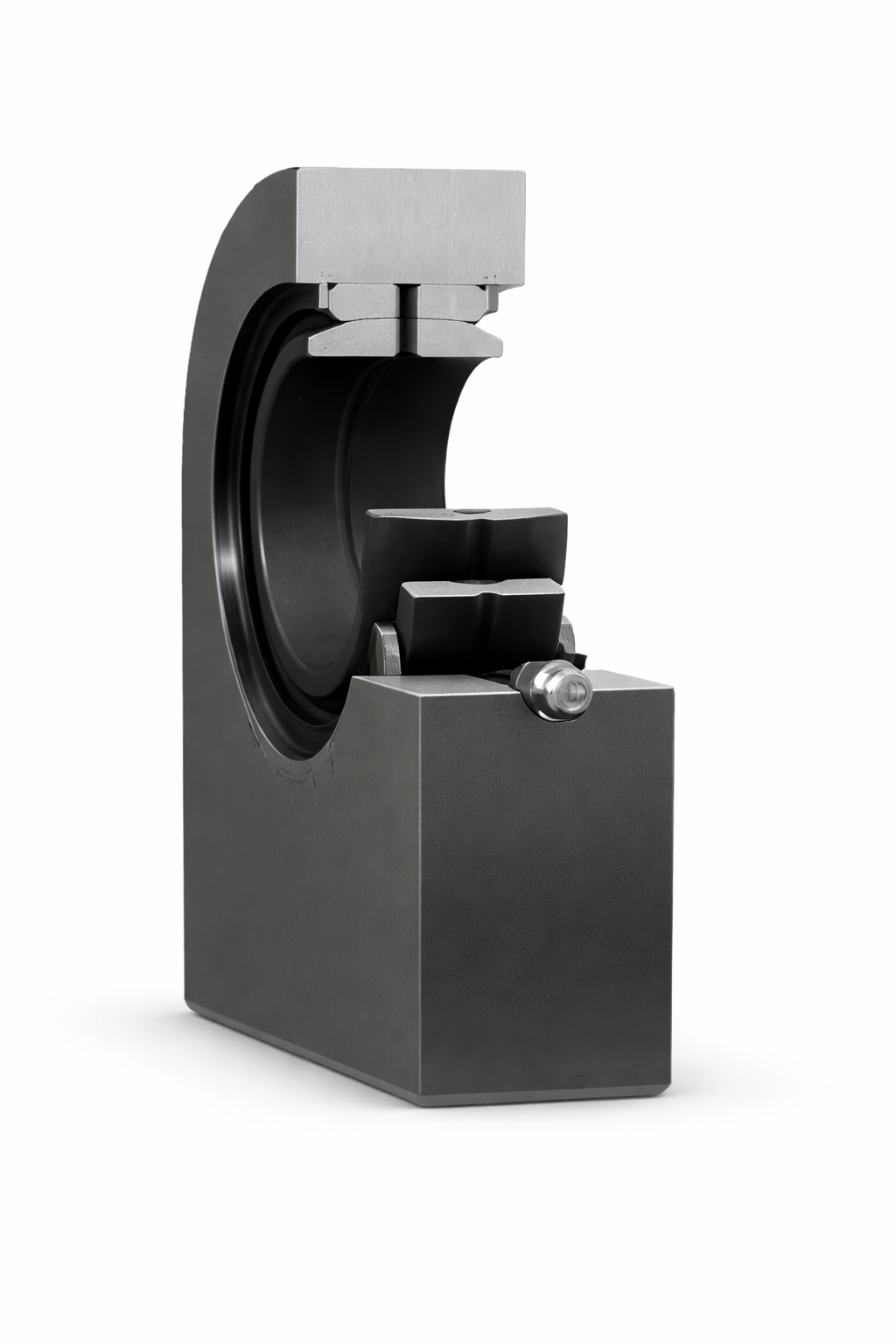

GF..DO

ISO 12240-1

APPLICATION AREAS

Robust ball joint for the production of

hydraulic cylinders, particularly suitable for welding to the back of the

hydraulic cylinder due to its flattened shape. The ball joint is removable.


FEATURES

Manufactured from stamped ST52.3 steel.


COUPLING

Steel/Steel to be lubricated regularly. Inside the end of the rod is mounted a GE..DO, GE..LO, GE..FO spherical bearing according to ISO12240-1, secured by snap rings. Equipped with a grease nipple for lubrication with a diameter of 20.

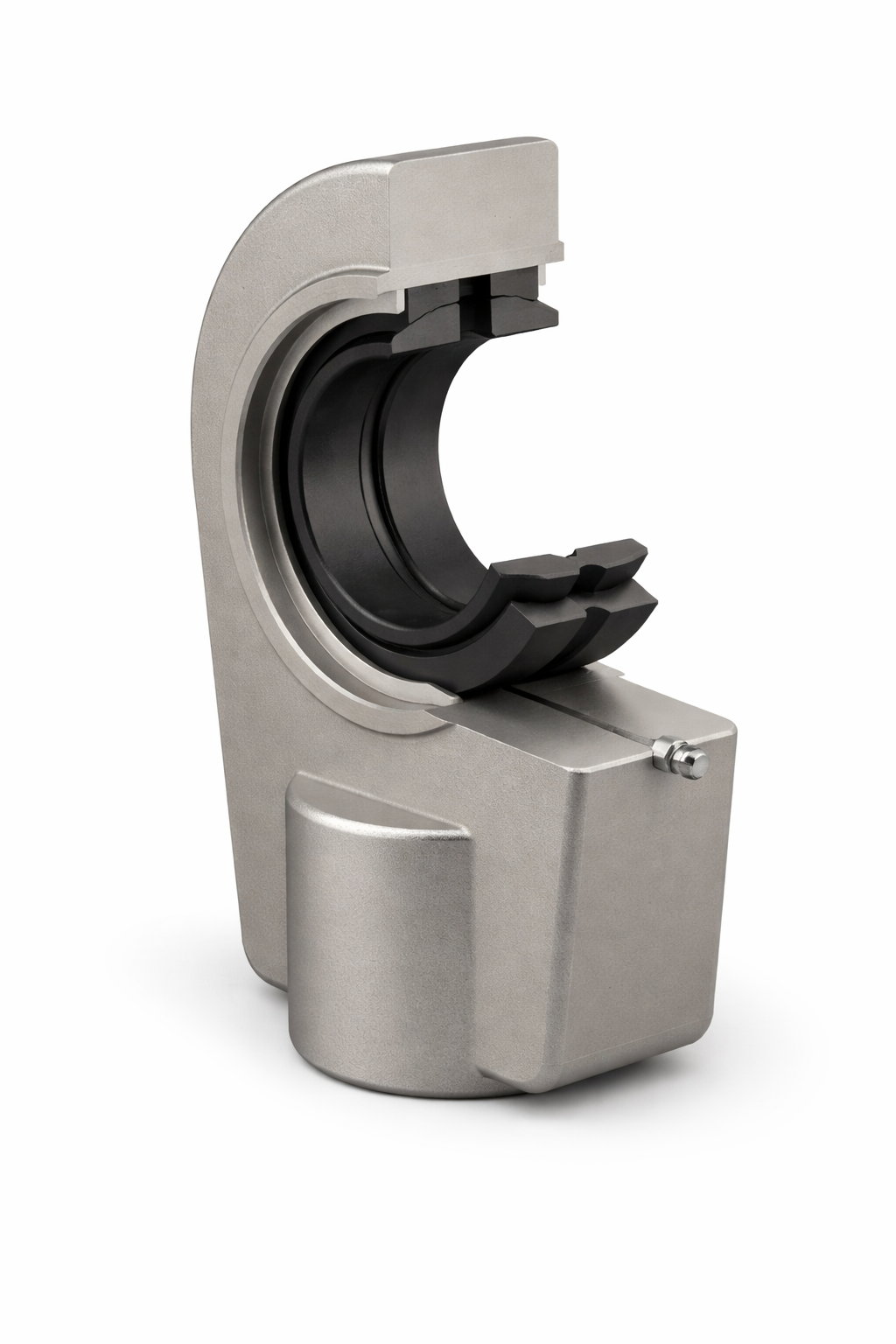

SIHR..DO

ISO 12240-1

AREAS OF APPLICATION

Particularly compact rod end with short thread, suitable for the construction of hydraulic cylinders that allow reducing the center distance, maximizing the available stroke.


CHARACTERISTICS

Produced in C45 stamped steel, except for size 120, which is made of EN-GJS-400-15 nodular cast iron. Available to order with left-hand thread (product code SIHL..DO) and anti-corrosion surface treatments such as zinc plating, phosphating or nickel plating. We can supply terminals with 2RS protective gaskets.


COUPLING

Steel/Steel, requires regular lubrication. Inside the end of the rod

is a GE..DO, GE..FO, GE..HO-2RS ball joint according to ISO 12240-1, secured with snap rings.

Equipped with a grease nipple for lubrication.

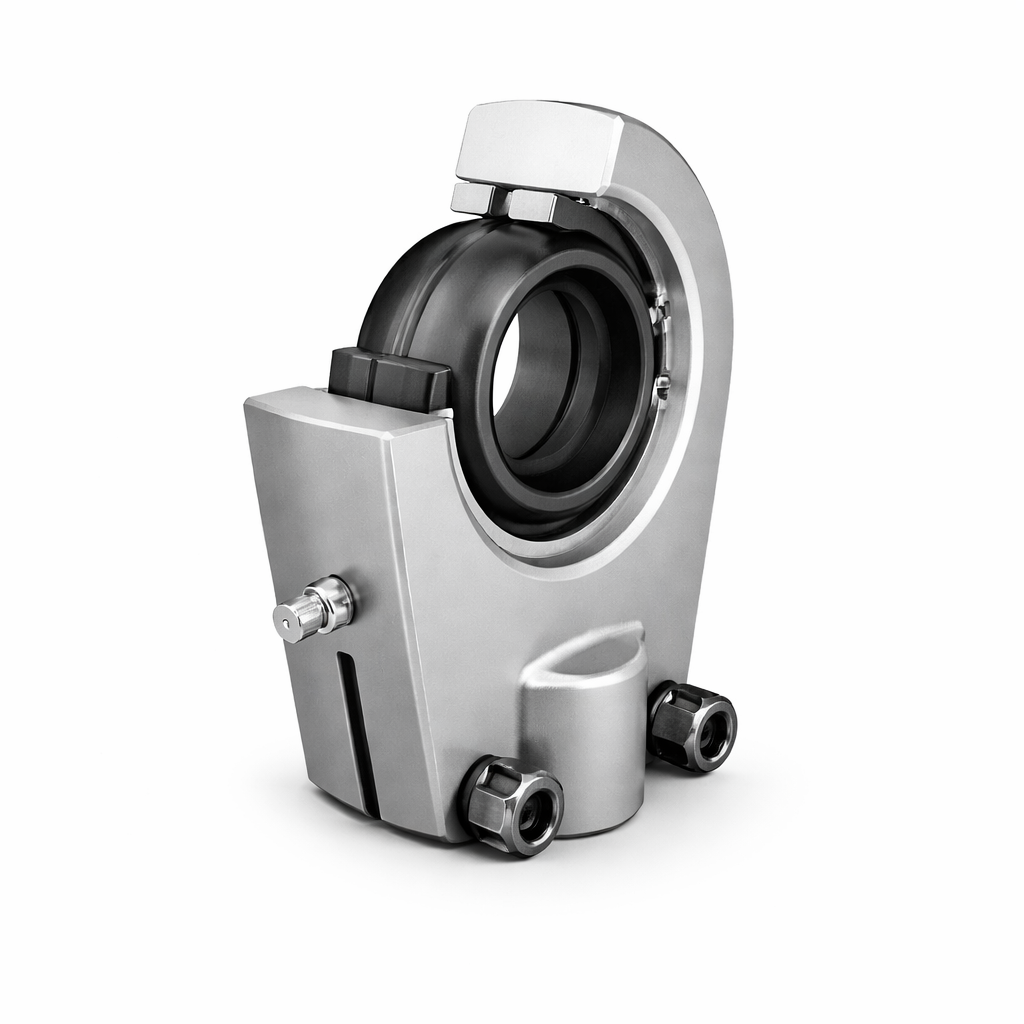

GIHR..KDO

ISO 12240-1

AREAS OF APPLICATION

Particularly compact rod end with short thread, suitable for the construction of hydraulic cylinders that allow reducing the center distance, maximizing the available stroke.


FEATURES

Manufactured from C45 stamped steel, except for size 120, which is made from EN-GJS-400-15 nodular cast iron. Available to order with left-hand thread (product code GIHL..KDO) and anti-corrosion surface

treatments such as galvanizing, phosphating and nickel plating. See

specifications page. We can supply the terminals with 2RS protective gaskets


COUPLING

Steel/Steel, requires regular lubrication. At the end of the rod is a GE..DO ball joint according to ISO 12240-1, secured with snap rings. The rod has grooves to allow fastening by means of hexagonal bolts according to DIN 912 class 12.9. Equipped with a grease nipple for lubrication.

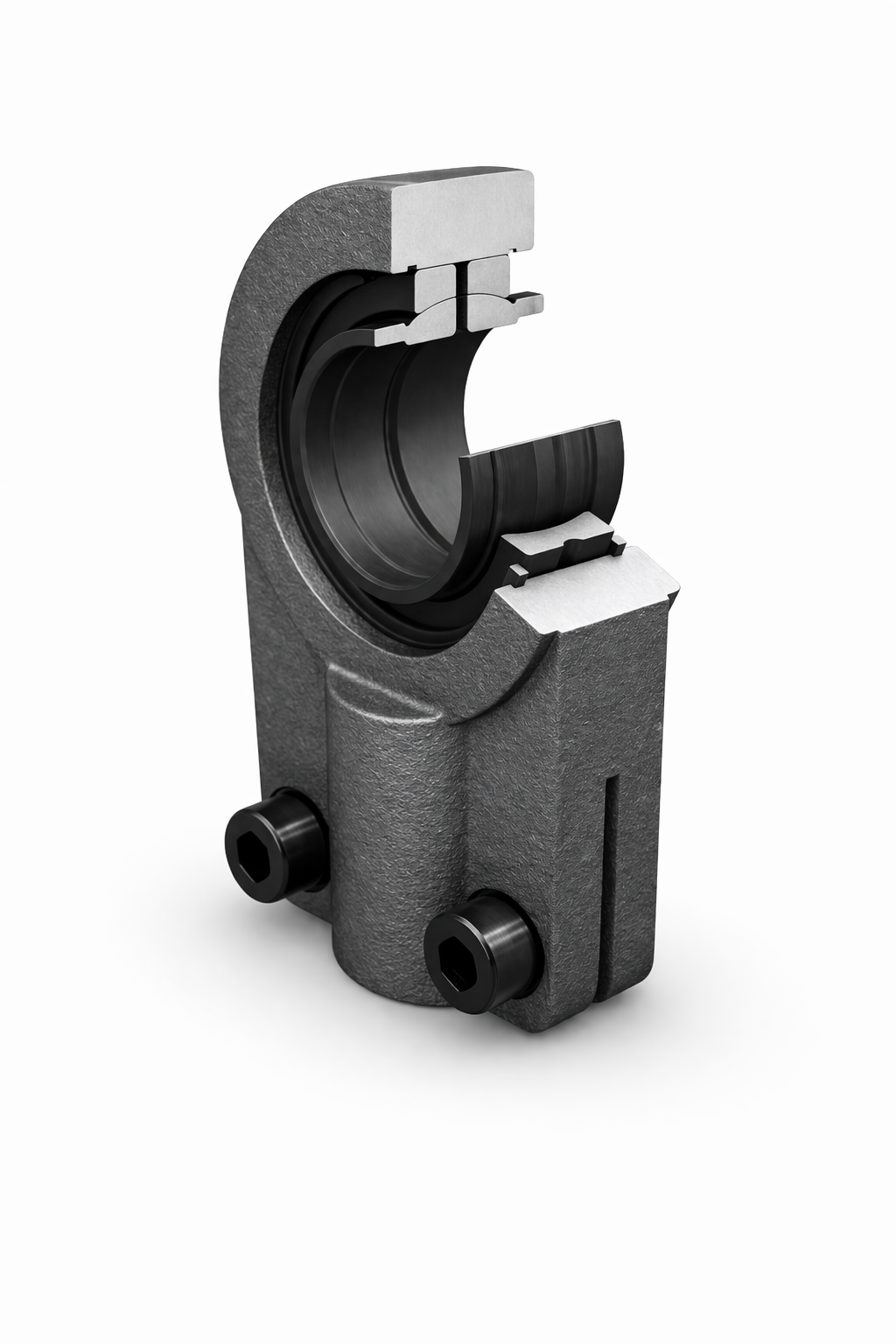

GIHN..KLO

ISO 12240-1

APPLICATION AREAS

Rod terminal for the construction of hydraulic cylinders according to

DIN 24338. Meets the standards corresponding to CETOP RP 58 H recommendation and DIN 24333-24336 and ISO 6020/1-6022 standards.


CHARACTERISTICS

Produced in C45 steel. Stamped up to a diameter of 100 mm; from a diameter of 110 mm, it is obtained from EN-GJS-400-15 nodular cast iron. Upon request, they can be supplied with left-hand thread (product code GIHL..KDO) and anti-corrosion surface treatment, such as: zinc plating, phosphating and nickel plating.


COUPLING

Steel/Steel for regular lubrication. Manufactured in accordance with

DIN 24338 – ISO 6982 – ISO 8132 standards, with GE..LO ball joint assembled according to ISO 12240-1, secured with snap rings. Grooved shaft to allow fastening by means of hexagonal bolts according to DIN 912 class 12.9. Equipped with a 20 mm diameter grease nipple for lubrication.

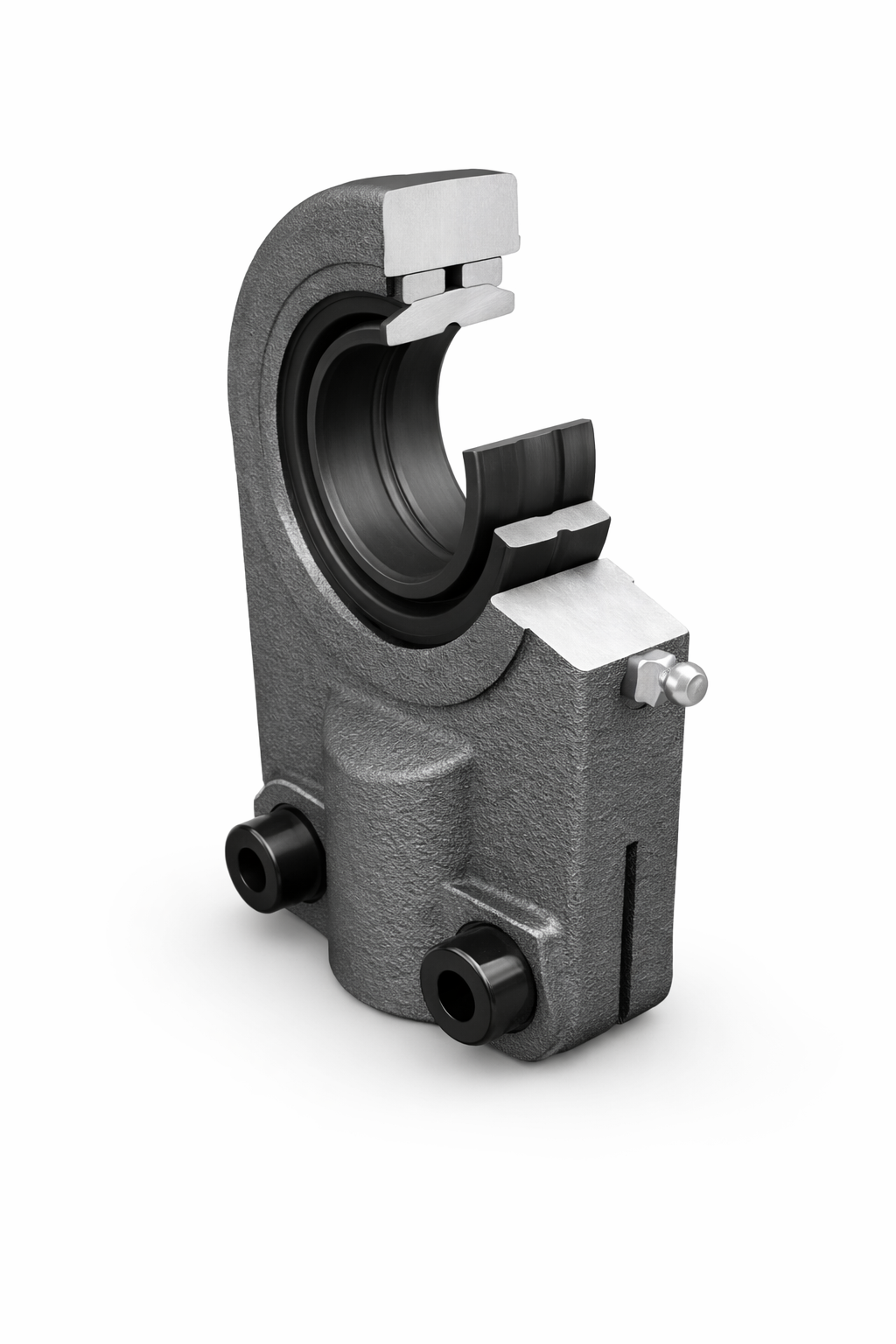

GIHO..KDO

ISO 12240-1

APPLICATION AREAS

Rotating terminal manufactured in accordance with ISO 6020 standard for hydraulic cylinders with a maximum pressure of 160 bar.


FEATURES

Manufactured from stamped C45 steel. Available to order with left-hand thread (product code GIHL..KDO) and anti-corrosion surface treatments such as galvanizing, phosphating and nickel plating. We can supply the terminals with 2RS protective gaskets.


COUPLING

Steel/Steel, requires regular lubrication. Manufactured according to

DIN 24555 – ISO 8133, with GE..DO ball joint according to ISO12240-1, secured by caulking. Grooved shaft to allow fastening by means of hexagonal bolts according to DIN 912 class 12.9. Equipped with a grease nipple for lubrication with a diameter of 16 mm.

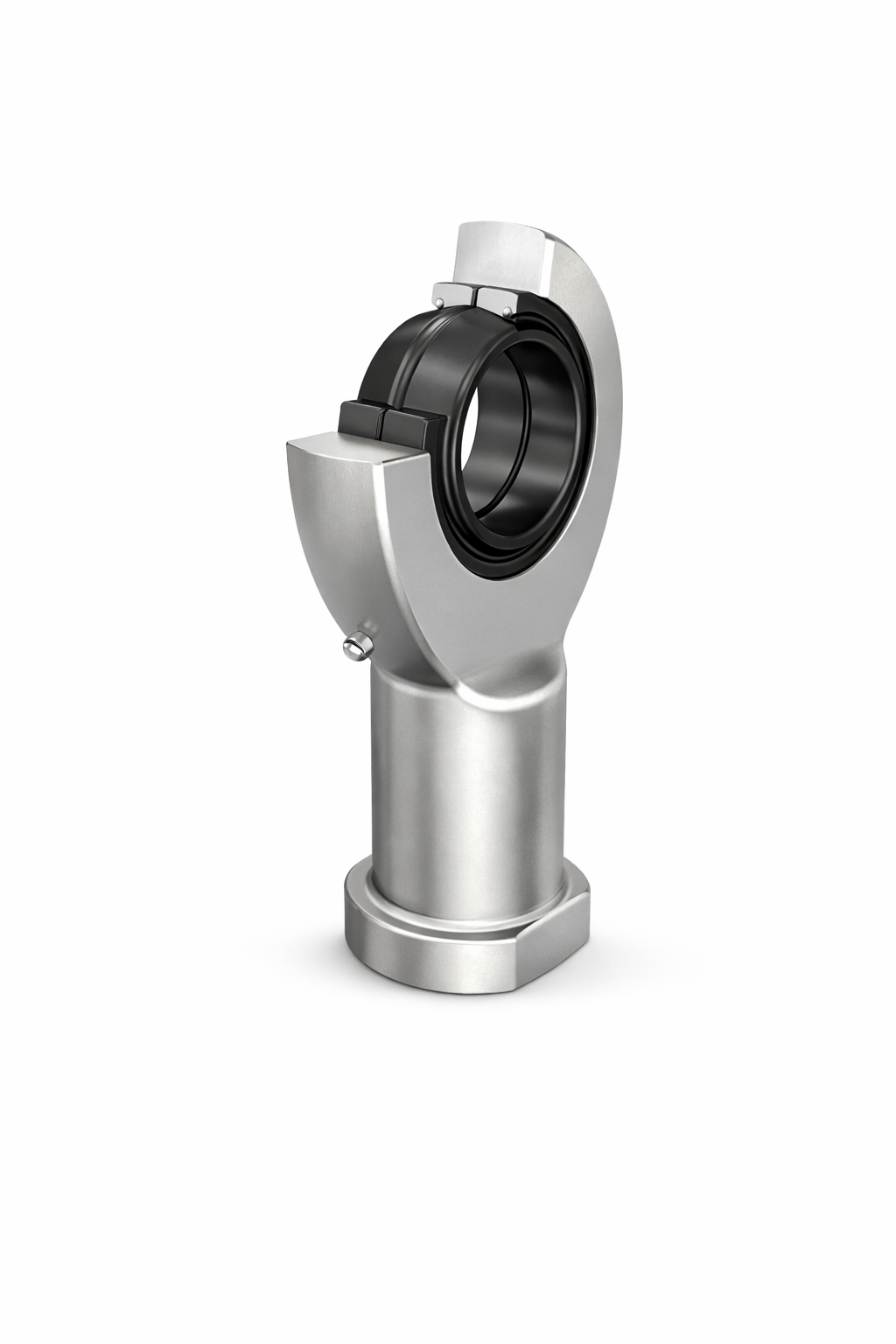

GIR..DO

ISO 12240-1

APPLICATION AREAS

Rod terminal particularly suitable for heavy-duty applications with long internal thread, ideal for mounting on hydraulic cylinders and levers of industrial machines.


FEATURES

Manufactured from stamped C45 steel. They have a long internal thread, suitable for a wide range of center distance adjustments. Available with left-hand thread GIL..DO – GIL..DO-2RS for diameters from 40 to 80 mm.


COUPLING

Steel/Steel to be lubricated regularly. Constructed according to ISO 12240-4 with GE..DO sliding spherical bearings mounted according to ISO 12240-1, up to a diameter of 30 mm; from 35mm onwards, the GE..DO-2RS bearing is mounted, which has protective seals. The

GE… bearings are fixed by caulking. Equipped with a grease nipple for

lubrication from a diameter of 20 mm.

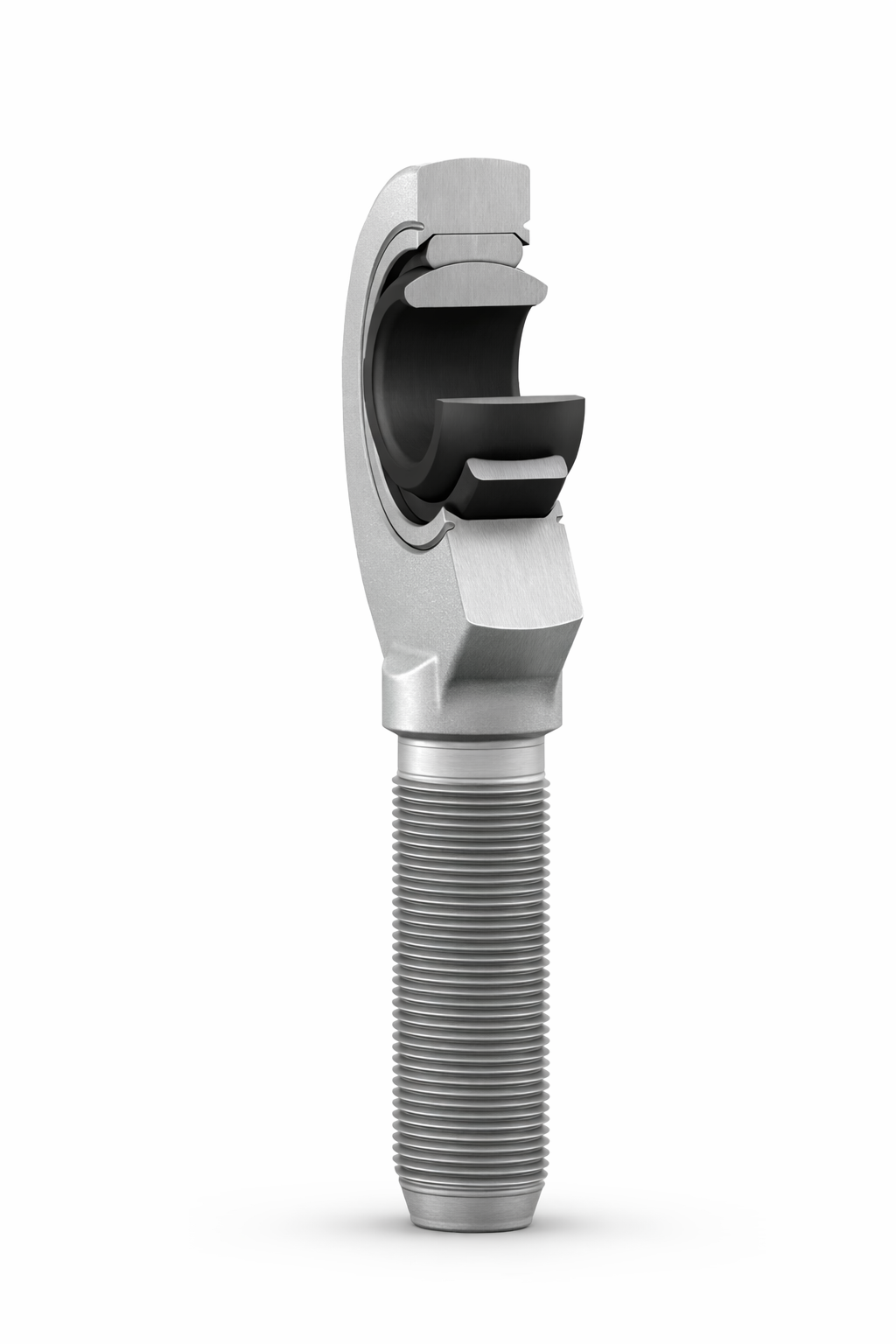

GAR..DO

ISO 12240-1

APPLICATION AREAS

Rod terminal particularly suitable for heavy-duty applications with long internal thread, ideal for mounting on hydraulic cylinders and levers of industrial machines.


FEATURES

Manufactured from stamped C45 steel. They have a long external thread, suitable for a wide range of center distance adjustments. Available with left-hand thread GIL..DO – GIL..DO-2RS for diameters from 40 to 80 mm.


COUPLING

Steel/Steel to be regularly lubricated. Constructed according to ISO 12240-4 with GE..DO ball joint according to ISO 12240-1, up to a diameter of 30 mm; from 35 mm onwards, the GE..DO-2RS joint is used, which has protective seals. GE… joints are fixed by caulking. Equipped with a grease nipple for lubrication from a diameter of 20 mm.

EBS is constantly expanding its product range and offers a service that stands out from the competition.
